Title

Unboxing

What's inside your box.

Here you’ll find a complete list of all of the components that make up your GeoDomeX Mini. Each panel and strip is numbered, to support easy identification, allowing you to easily switch out panels should you need to. Use this part list as a reference to ensure you have everything before you get started on assembly. If you find you have any broken or missing parts, get in touch with us at support@geodomex.co.uk.

Take care when unpacking. Some parts are packaged under tension, so will spring apart when opened. These parts are labelled with a warning sticker. When opening theses parts, point them away from your face and other people.
Title

Assembly

How to build your dome.

This guide takes you through the process of assembling your dome from start to finish. Each step provides guidance on the necessary actions, the required components, and our recommended tips to keep each step as simple as possible. If you need any support during the assembly, you can get in touch with us. We’re more than happy to help talk you through the process.

Preparing your space

Make sure you have a space of at least 2.7m by 2.7m to build your dome. Ensure that the ground type is completely level to ensure that the door will function correctly.

Take extreme care when unpacking. Some parts are packaged under tension, so will spring apart when opened. These parts are labelled with a warning sticker. When opening these parts, point them away from your face and other people.

A stepladder may be useful during the build, so have this to hand before you get started.

You may find it helpful to lay out all the panels prior to starting the assembly. Each panel has a unique number engraved at the top (the numbers can be found at one end of any strips). These numbers need to always be readable from the outside of the dome.

Screws can be tightened by hand, though we do provide a screwdriver to help you do this. An electric screwdriver can be used, but always ensure you are using the lowest torque setting to prevent over-tightening the screws as this can cause damage to the screw-threads and panels.

We recommend 2+ people for an easier and faster assembly experience.

To reduce fingerprints on the panels during assembly, the plastic protection can be removed at the end, just make sure to remove it from the screw holes (on both sides of the panel) as you go.

Step by step guidance

1. Take strips 001-005 and lay them in order, ensuring 005 is placed where you want your door to be located.

NB: Make sure the numbers on the strips are readable from the outside of the dome.

2. Secure these strips together using the L-shape brackets. The remaining brackets are placed in the middle of these strips. Make sure the brackets sit on the inside of the dome. Use the four highest holes on each bracket.

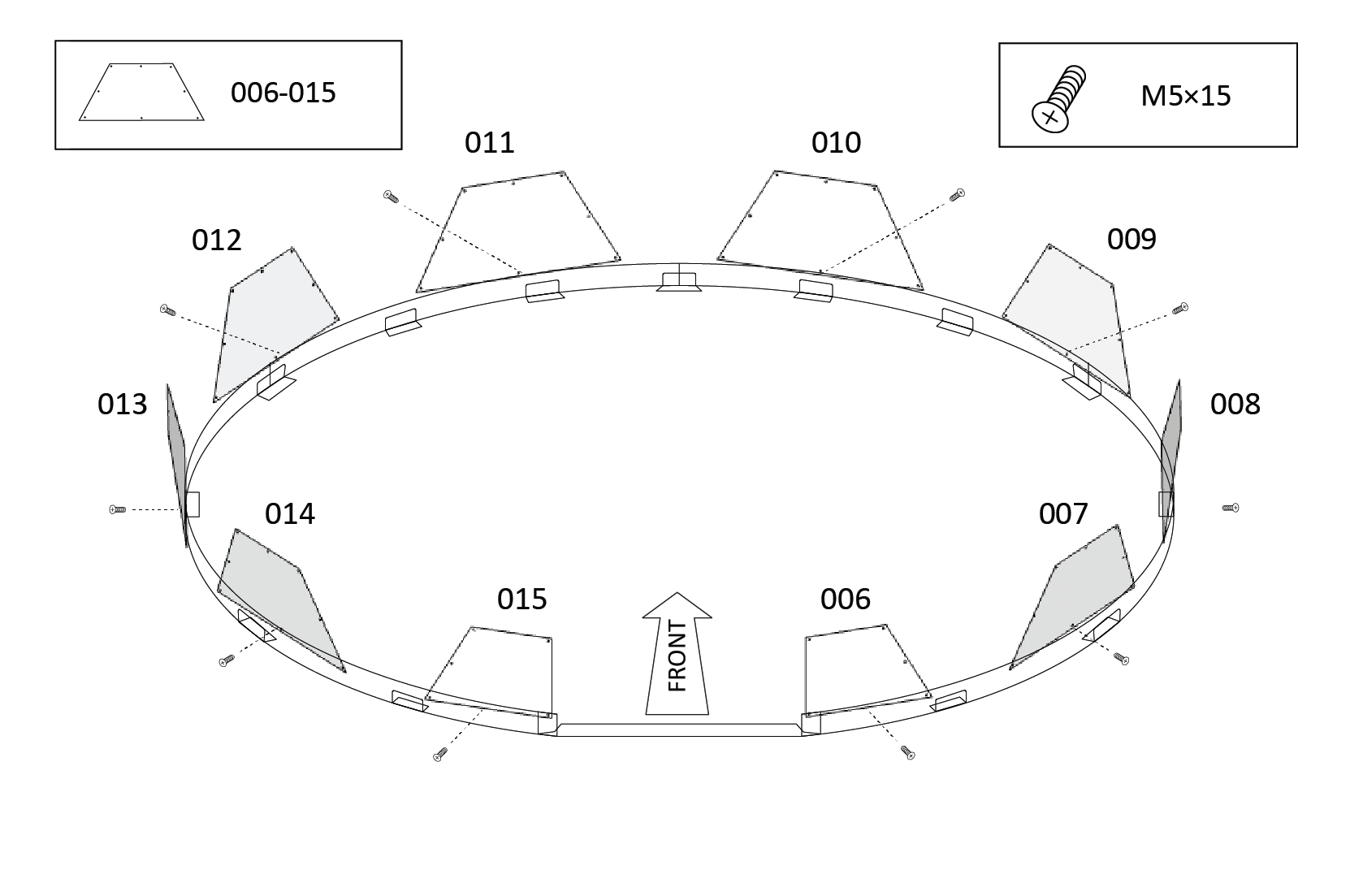

3. Taking panels 006-015, start attaching these in numerical order, starting from the right hand side of the dome and working anti-clockwise. Make sure to only put a single screw in the centre hole of each panel, to avoid having to remove screws when adding panels in later steps.

4. Prepare panels 019 and 021, which make up your retractable windows. To do this, stack the components on the inside of the panel so that the window pushes outwards. Make sure to use longer screws where highlighted so you can fit the locking clips on top.

Tip: Don’t over-tighten the long screws as you want to ensure the clips can twist back and forth.

5. Attach panels 016-024, which includes the two window panels you’ve just constructed. These will slot directly into the gaps left by the last row. Ensure to only put screws in the bottom five holes.

6. Attach panels 025-034, continuing in the anti-clockwise pattern as before. Ensure to put screws only in the locations shown in the reference diagrams.

7. Attach panels 035-043, continuing in the anti-clockwise pattern as before.

8. Attach panels 044-053.

9. Attach panels 054-062 into the gaps left from the previous row.

10. Continue going round attaching panels 063-072 in pairs.

11. Select strips A1-A3 and place them one behind the other with the numbers facing out. With A1 at the front, attach them to the inside of the left hand-side of the doorway. Ensure the bottom of the strips are lined up; the strips are different lengths and should line up so A1 is the longest, A2 the shortest, and A3 in between at the top. Attach screws from the bottom of the strips, stopping before the final hole at the top corner of panel 072.

Tip: Make sure to use long screws here. It may help to attach the top and bottom screw holes first to stabilise the strips before securing the rest.

12. Repeat this process on the right hand-side of the door with panels B1-B3, stopping before the final hole on panel 063.

13. Attach panels 073-076 where shown.

14. Prepare your window vent panels, numbers 078, and 080, ensuring the vents are attached to the outside of the panel.

Tip: Secure the screws from the top of the vent, working downwards, bending the panel slightly if necessary.

15. Attach the panels 077-081 including the vent panels you just constructed.

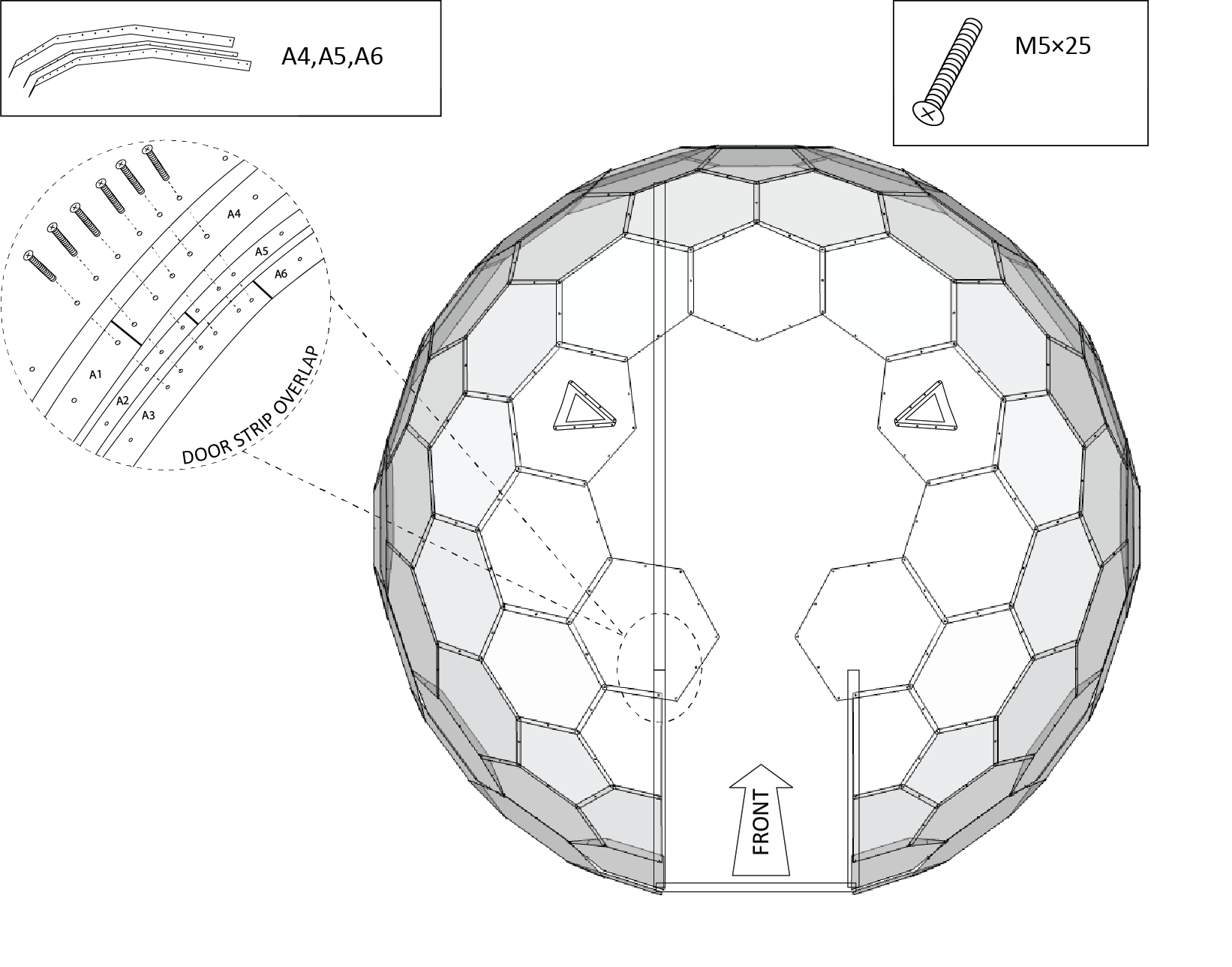

16. Align strips A4-A6 with numbers facing out, A4 at the front. Connect these where A1-A3 end. A4 is the shortest, with A5 being the longest allowing it to fit between A1 and A3. Attach screws all the way up the strips.

NB: Use long screws.

17. Repeat this process again on the right side of the door with strips B4-B6.

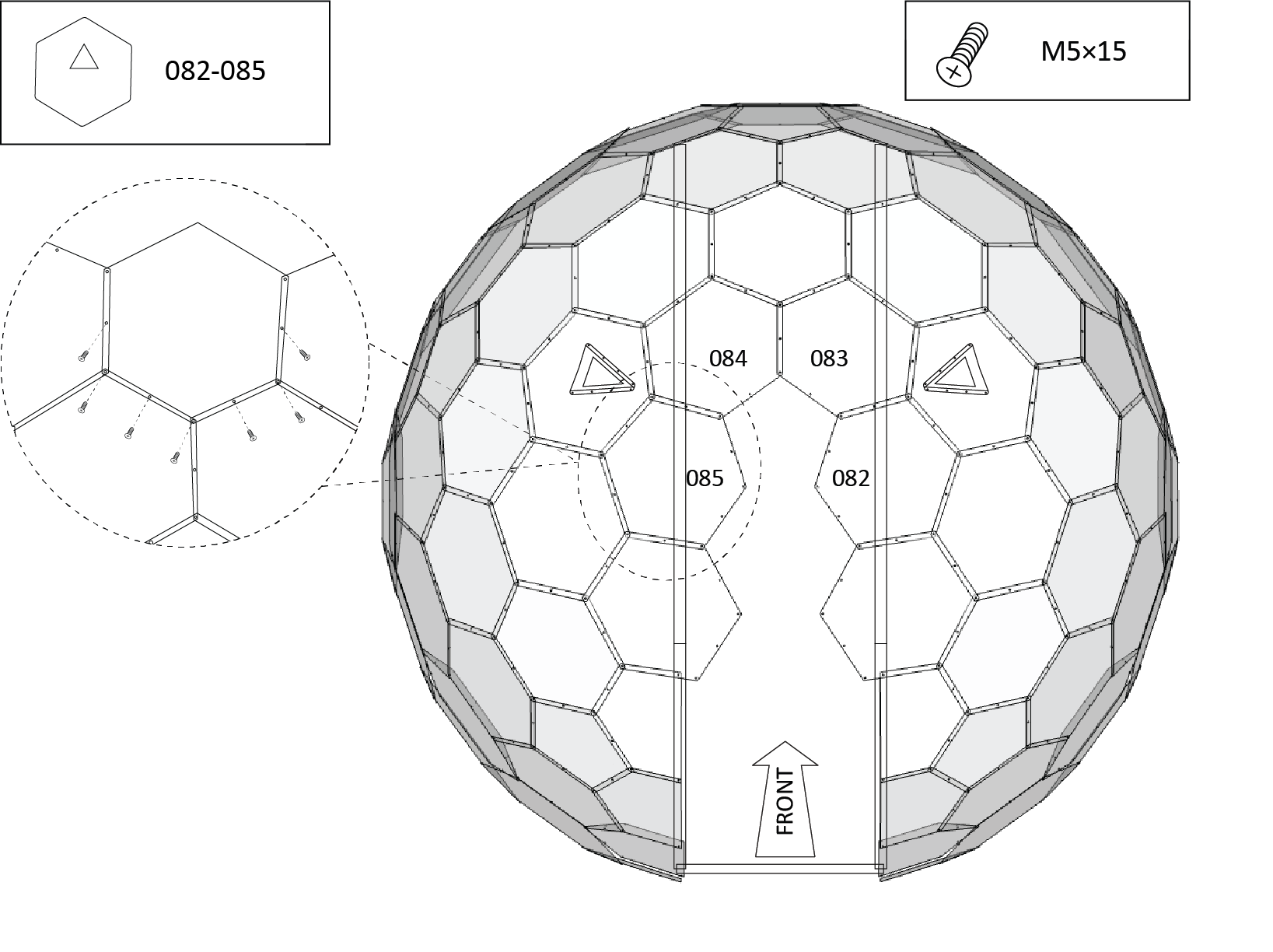

18. Attach the panels 082-085 in the locations shown.

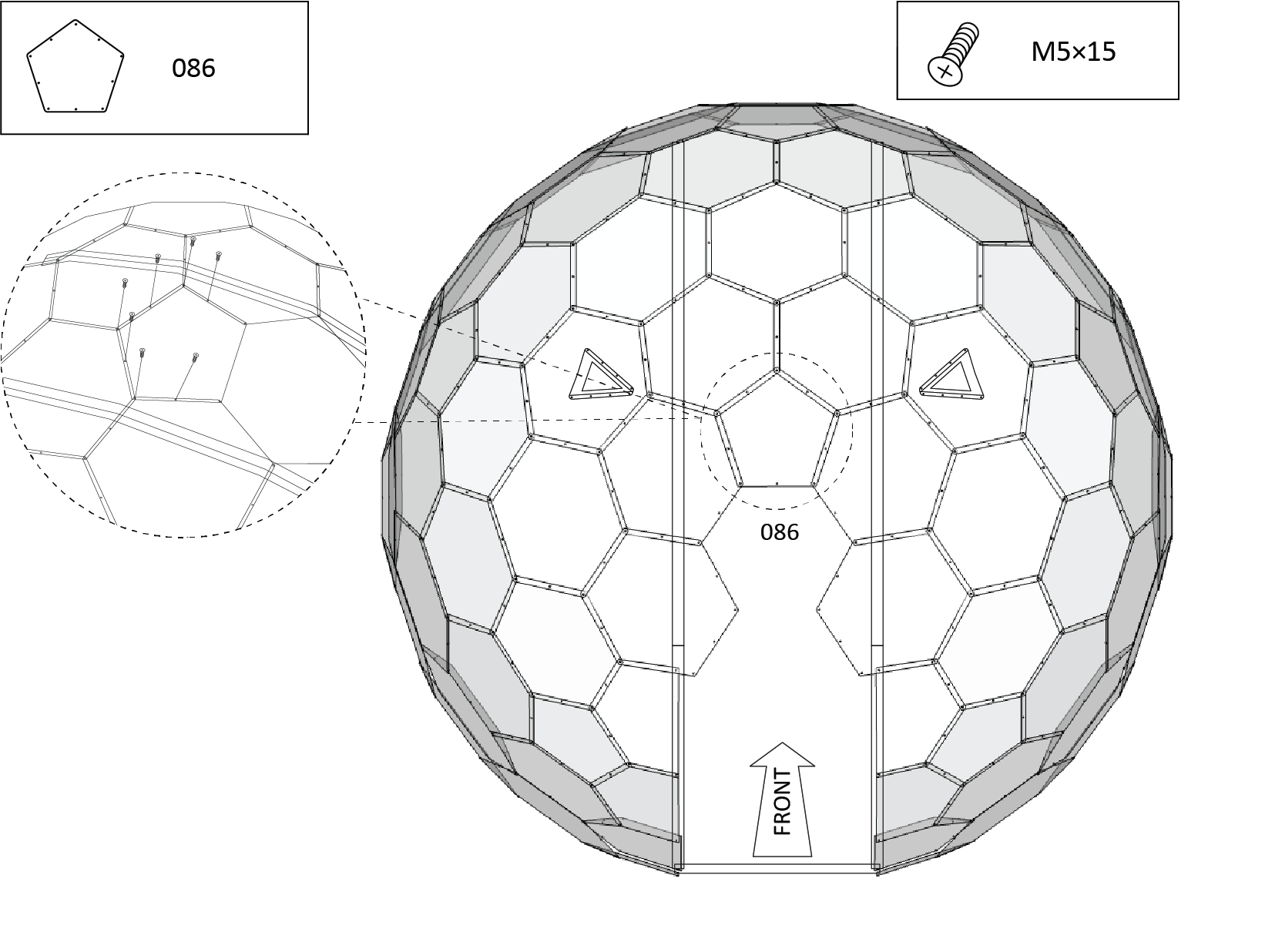

19. Attach panel 086 at the very top of the dome.

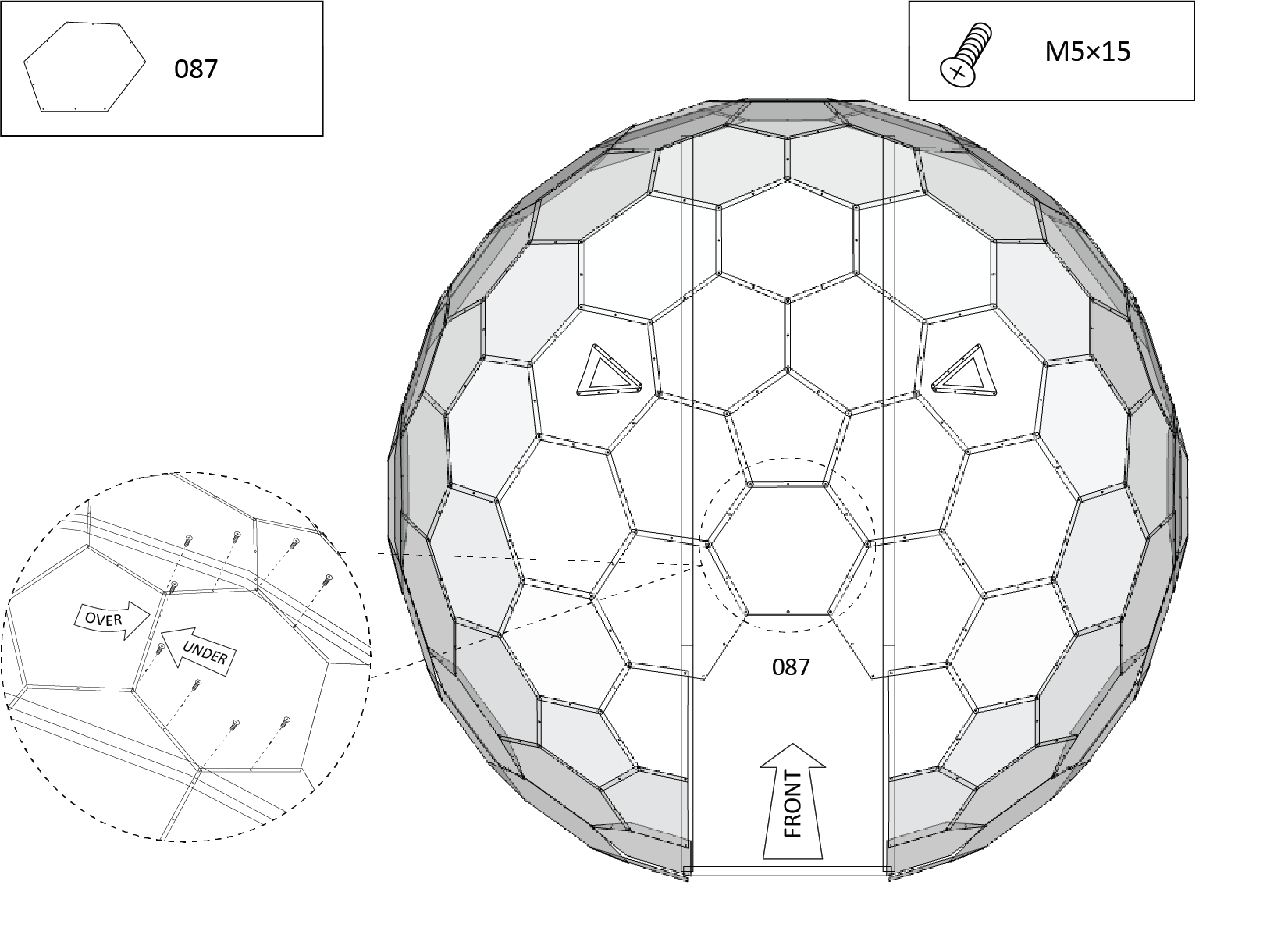

20. Attach your next panel working towards the front, 087, ensuring the top is slid under the bottom of panel 086.

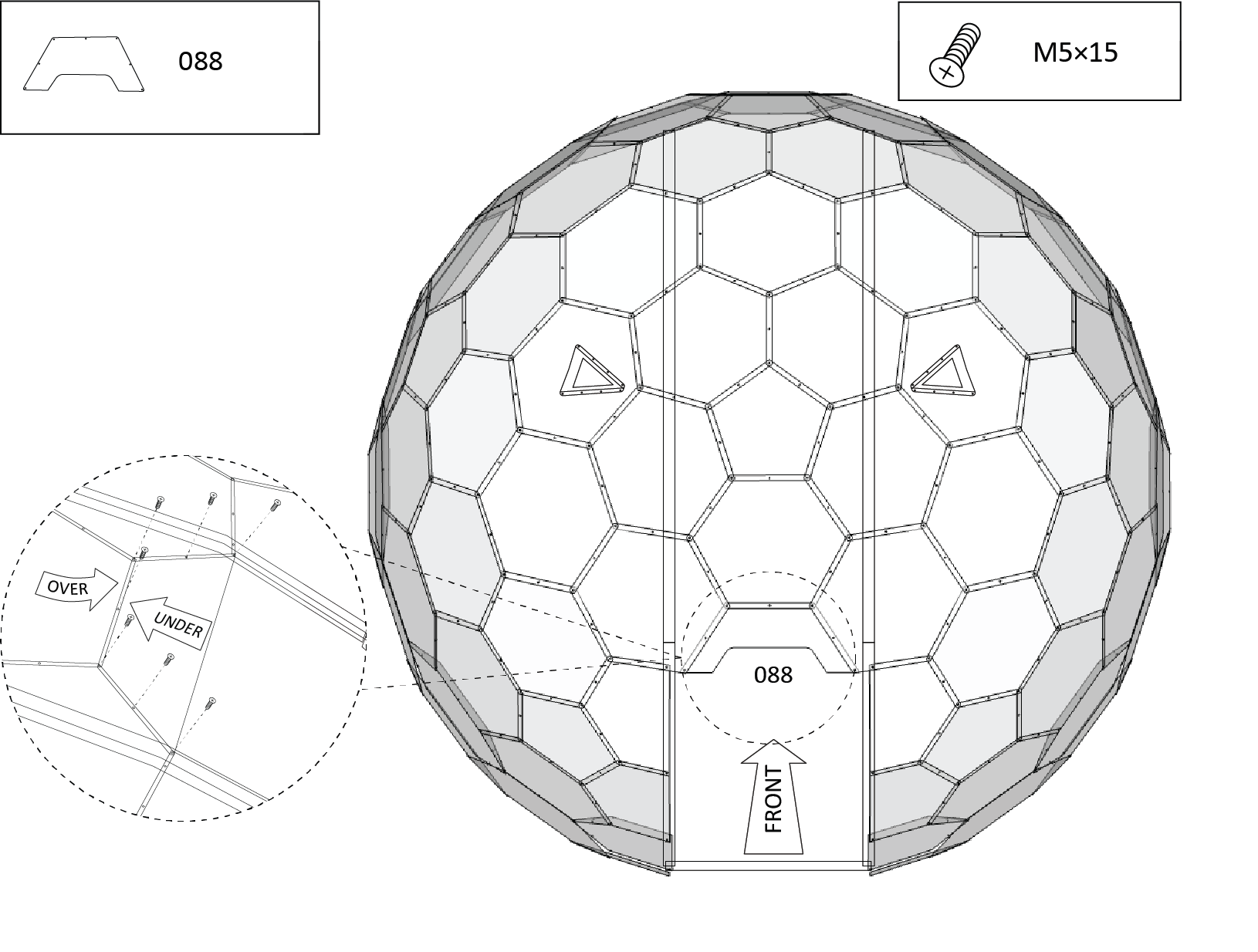

21. To complete the dome, attach 088 ensuring the top is slid under the bottom of panel 087.

22. Prepare the door by attaching the crossbars using the small screws.

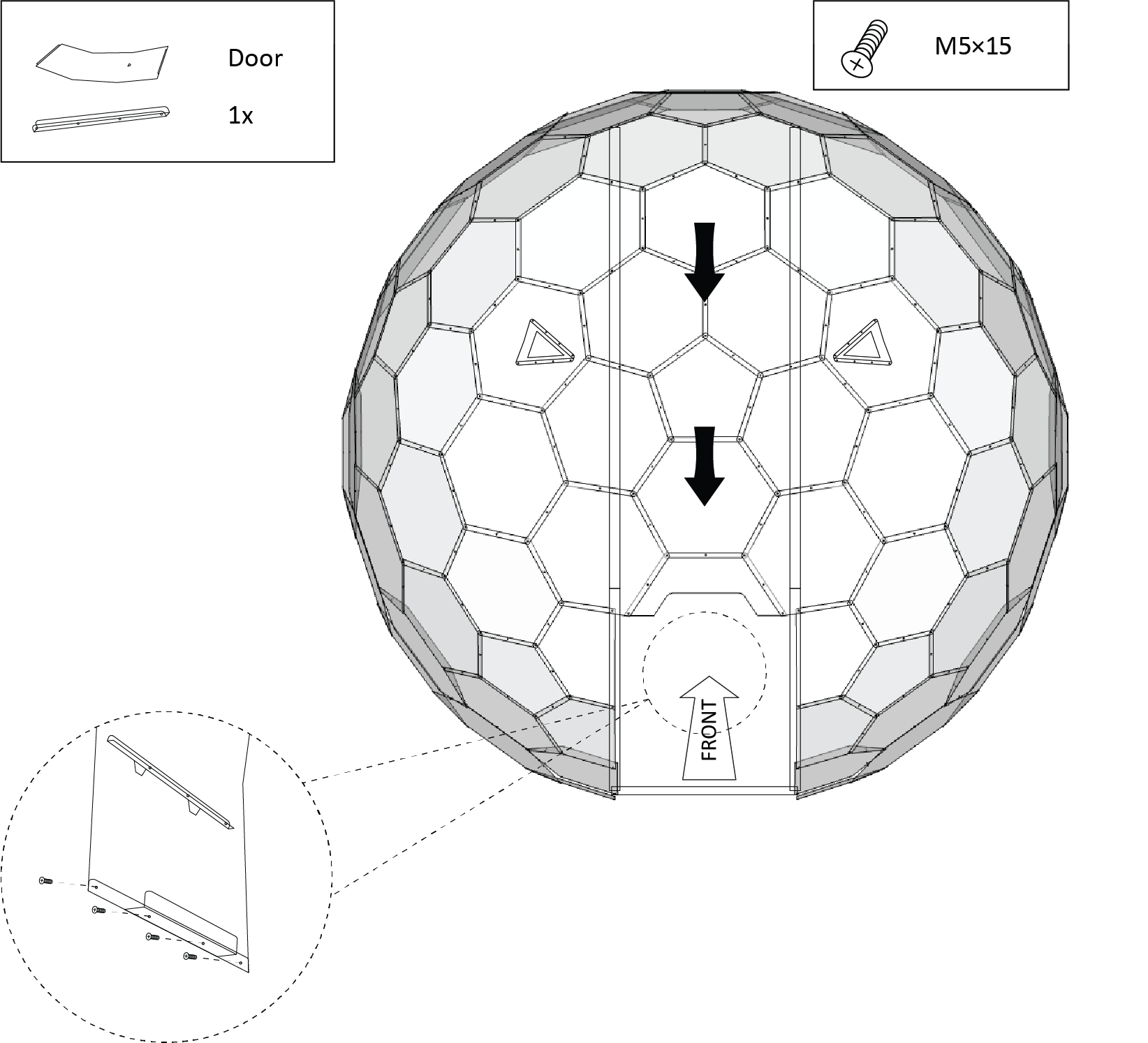

23. Slide the door in from the back of the dome, pulling it forward into place. Attach the U-shaped door bar at the bottom after sliding in the door. This completes the assembly of your GeoDomeX Mini.
Title

Anchoring

How to attach the dome to the ground.

Once you have assembled your GeoDomeX Mini, the following guide takes you through the step-by-step process of anchoring your dome to the ground. If you need any support with the anchoring of your dome, you can head to the support page or our website to find out how to get in touch with us. We’re more than happy to help talk you through the process.

Tools you will need

Tape Measure

Drill/Hammer

Choosing your anchoring method

GeoDomeX Mini must be secured to a solid surface to ensure stability in varying conditions. The recommended method depends on the type of ground you’re anchoring to

Wood, Composite, Decking

+50mm screws

Stone, Brick, Concrete, Paving, Tile

+50mm screws

Rawl plugs

Step by step guidance

Regardless of the ground type you are anchoring your GeoDomeX Mini to, the following steps remain the same. Note, if you are anchoring your dome into stone, brick, concrete, paving slabs, tile, etc, you may need to drill pilot holes prior to inserting the screws. Also, be careful to ensure the surface you are anchoring your dome to is completely level around the circumference of your base otherwise door function may be affected.

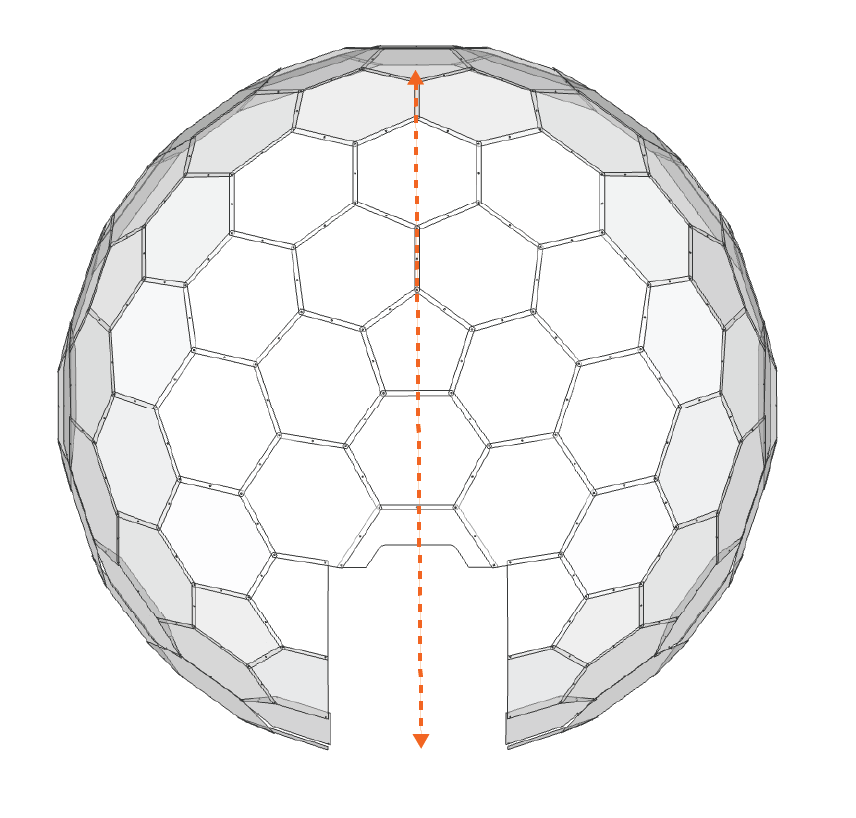

1. First, measure from the door threshold to the back of the dome ensuring the door is positioned where you want it. Ensure the distance from back to front of the dome is equal to 270cm. You can then secure 005 (door threshold) and the back bracket to the ground using the anchoring method choosen.

Tip: If the final flooring of your dome is already laid and you don’t want to leave a hole, you can simple make a mark with a pencil instead.

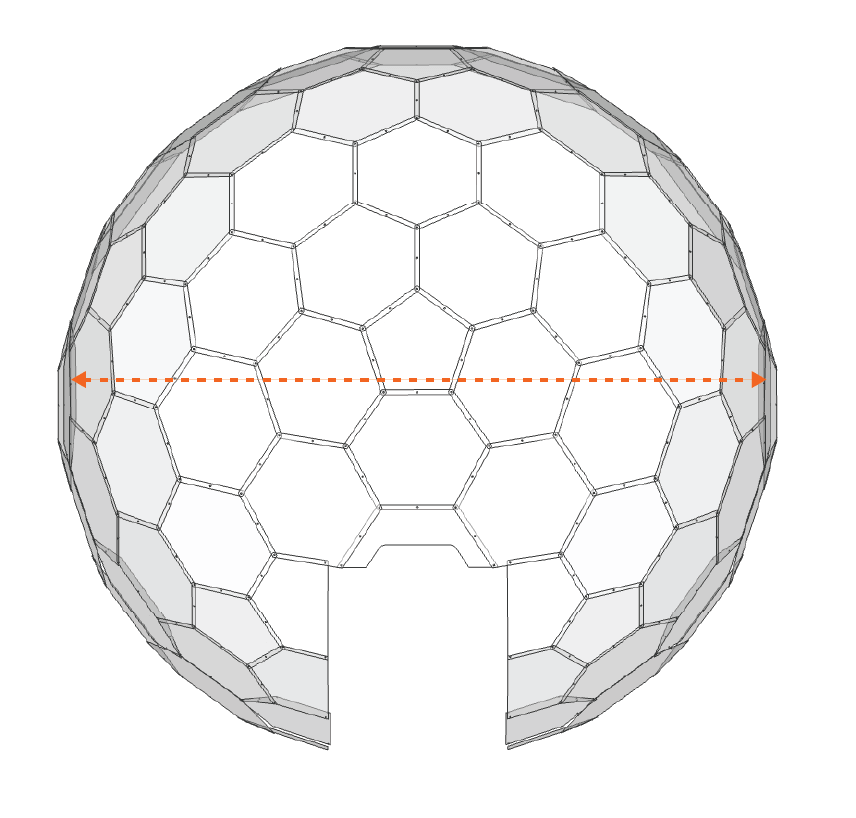

2. Next, measure from left to right across the width of the dome. This measurement should equal 270cm. Secure the brackets opposite each other either side of the dome using the anchoring method chosen.

3. Now go around the dome and secure the remaining brackets ensuring the dome has a consistent round shape. It’s best practice to alternate to each side of the dome as you go around securing each bracket.

Tip: Only drive the screws in halfway at each bracket, until each bracket is in place, allowing for adjustments as you go.

4. Once you have a screw/pin in every bracket, check the dimensions are correct. The left to right dimension should be 270cm, whilst the back to front dimensions should be 270cm. Once correct, go ahead and ensure each screw is completely secure and screwed all the way in.

Troubleshooting

If after you have anchored your dome you are finding common issues like the door not functioning correctly (falling out or sticking), or bulges in the domes shape, the following checks should help to solve any issues:

Ensure the ground is level all the way around the domes circumference making sure there are no raised or sunken areas in the floor affecting the dome’s shape.

Ensure the inside diameter of the dome is 270cm from opposite sides, left to right.

Ensure the inside front to back diameter of the dome is 270cm.

If the door is still sliding too freely or is gripping too much, unscrew part 005 (the doorway threshold) and move it in or out slightly before re-screwing. This helps to reangle the door profiles, loosening or tightening the door as needed.
Title

Aftercare

How to look after your dome.

Looking after your GeoDomeX Mini is easy, with little to no maintenance needed over the years. This guide takes you through all the information you need to know in regards to cleaning, maintenance and care for your dome, ensuring GeoDomeX Mini lasts you a lifetime.

Looking after your dome video
Poster

Watch the video walkthrough to find out all you need to know about how to care for and maintain your dome.

Video Chapters

00:09 - Prevention

00:35 - Microfibre Wipe Down

00:50 - Hose Down

Prevention

The first step to maintaining your GeoDomeX Mini is prevention. Keeping the space above your dome free from overhanging branches is a simple way to reduce any build up that may occur. We also recommend keeping the windows and doors closed when not in use.

Cleaning

GeoDomeX Mini can be cleaned easily using a soft micro fibre cloth and a mild detergent. Generally any mild soap or cleaner suitable for windows is best. If in doubt, check the label and ensure the product can be used on plastic, testing on an inconspicuous area of the dome first. Alternatively you can use a garden hose or a pressure washer (on the lowest setting) to hose down any stubborn marks.

Never use abrasive cleaners or cloths to clean GeoDomeX Mini as this can lead to scratching.

Storing or relocating

Whilst GeoDomeX Mini is designed to withstand conditions all year round and does not need to be stored away during the winter, we know that there may be instances where you would want to disassemble or relocate your GeoDomeX Mini to a different location. GeoDomeX Mini can be easily disassembled, following the assembly instructions in reverse. If just moving the dome, it is possible to lift it from multiple points around the base with some helpers, without having to take the dome apart.
